Avid BC / Broken strap holder (lower)

Discussion in 'Sherwood SCUBA' started by jalvare2, Jul 11, 2014.

  1. Ray Stone

    Ray Stone Garibaldi

    # of Dives: 200 - 499
    Location: Key largo
    3
    1
    1
    I WOULD LIKE TO SEE THE PICS ,WAS CONSIDERING MAKING A REPAIR FOR FRIENDS BC ALSO SHERWOOD.

  2. Jonny Wishbone

    Jonny Wishbone Barracuda

    # of Dives: I just don't log dives
    Location: West Central Florida
    338
    186
    43

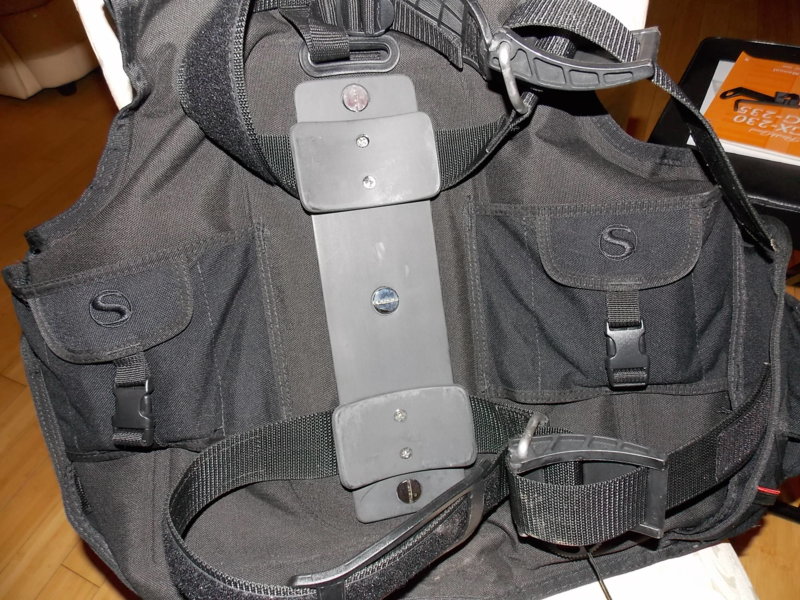

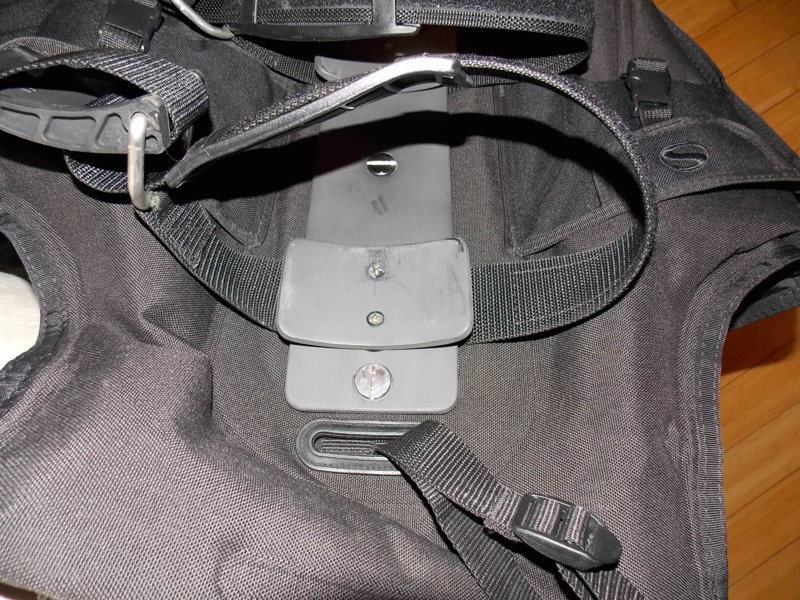

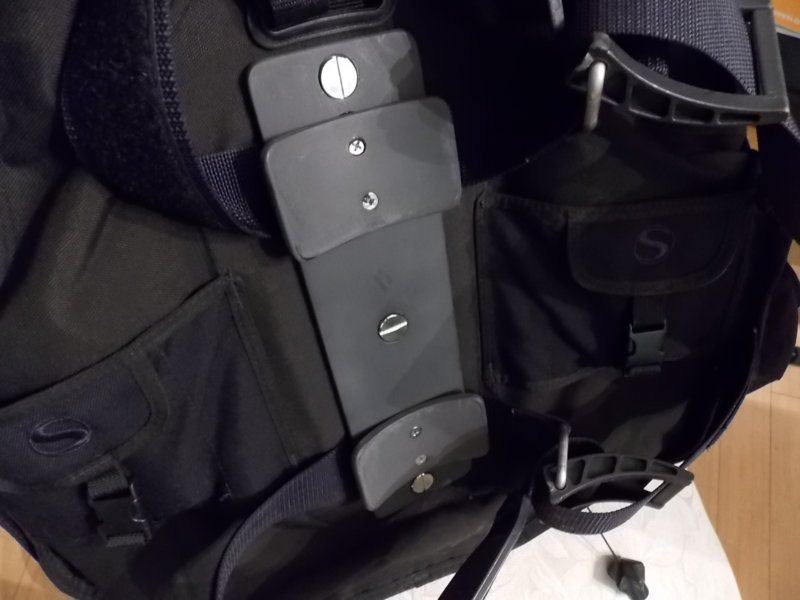

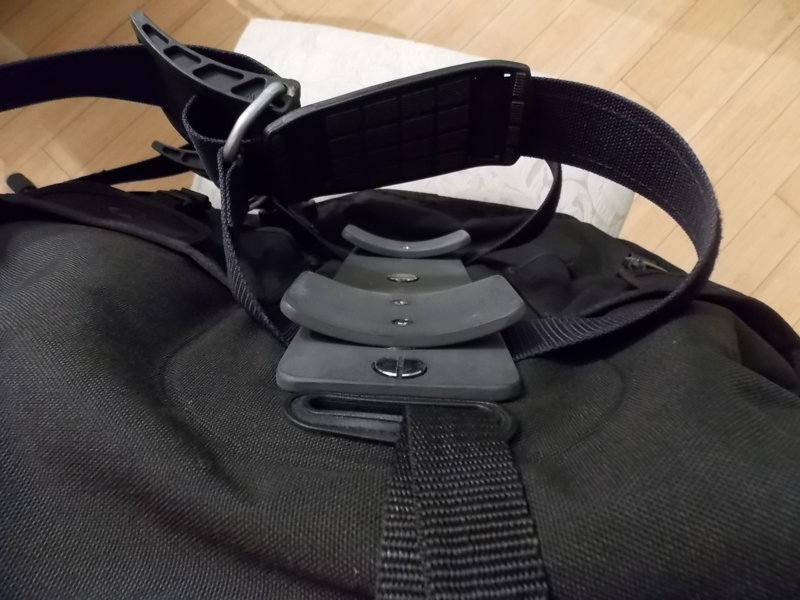

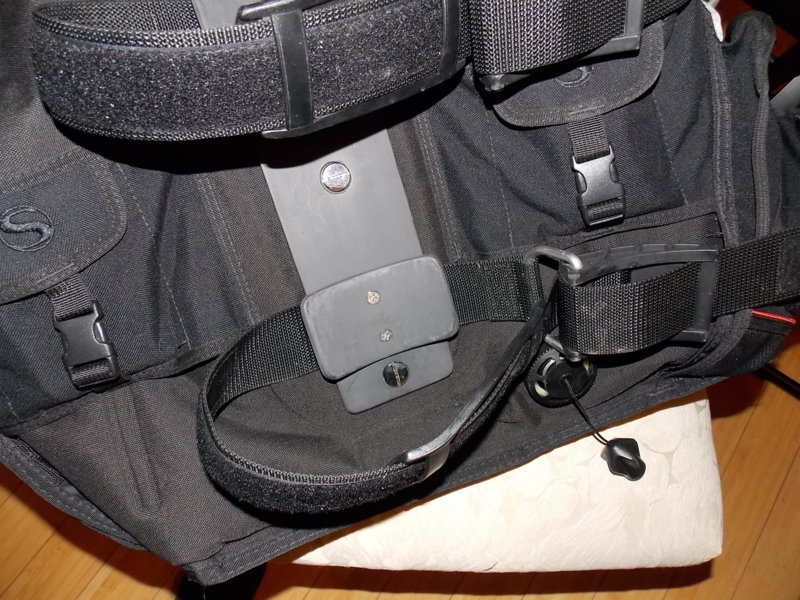

    Ok, here is what I did. Although I am pretty handy at things all of this was done by hand without sophisticated tools. Just a saw, drill, grinder and then I blasted it with baking soda to give it a matte finish because the ABS comes Glossy. bought a small sheet of black 1/4" thick ABS plastic from McMastercarr which was about $25. The piece you can't see is the one on the inside which is 2" wide and is slide into the padded back pad on the inside. The outside piece is about 4" wide and it goes past the square holes about 3/4"top and bottom. I got 3 back plate screws from DGX which you can see that bolts the inside ABS to the outside ABS. I cut 2 pieces same width as outside piece and used a heat gun to soften the ABS as it responds very well to heat. I used an old alum tank not in use anymore to mold the heated ABS to take shape of the tank and let then cool. The phillips screws seen go all the way through the BCD to the inner piece of ABS. As I assembled this contraption, I used 3M 5200 black and glued it all together. If you have ever used 5200 you know what it is capable of. I made sure to stay away from all edges so the 5200 would not squeeze out and be ugly. Tank straps are all the way behind the inside piece of ABS so the tank weight pulls on the entire assembly when walking. I also sat at the kitchen table and cut all the sewing that held the plastic squares in place to the BCD and removed them as they were all broken into crumbs. Daughter just used it at Blue Grotto and worked great. I think its better than the 2 plastic squares that Sherwood puts on them. My back up BCD is also a Sherwood Avid but so far it has not come apart. I use an Aqua Lung Dimention i3 back inflate as primary and hardly ever use the Avid. If It got more use it probably would fall apart too. When it does it will get a make over too. DSCN0980.JPG DSCN0979.JPG DSCN0978.JPG DSCN0977.JPG DSCN0976.JPG DSCN0980.JPG DSCN0979.JPG DSCN0978.JPG DSCN0977.JPG DSCN0976.JPG

    iamrushman and richmonddiver like this.
  3. iamrushman

    iamrushman Great White

    # of Dives: 1,000 - 2,499
    Location: ft. lauderdale, florida
    3,200
    876
    113
    very cool and good work.....Sherwood should hire you or at least consult with you for advice...thanks for sharing...i had two Sherwood avid diver BC's that went the way of the rubbish.

  4. Aqua-Andy

    Aqua-Andy Solo Diver

    # of Dives: 500 - 999
    Location: Southern NH.
    1,415
    504
    113
    This problem just caught my eye as the first posts in the recalls forum. I had an Avid as my first BC and while I did not have the same issue, I had an issue with the bladder leaking along the lower hem on the left side. There was no visible damage to the BC but the whole lower left hem would be blowing bubbles through the material. My BC was only slightly over one year old when I noticed that the bladder was leaking. The following Monday I called Sherwood Scuba and explained the issue that I was having. The rep propently stated that this is a common issue with divers that are cat owners and they find that 99% of the time it is due to a cat either clawing on or chewing on the BC. I then told him that we did not own a cat so that should no be an issue. After my statement he said that I could have my local shop send the BC in for inspection (at my cost) but if they found any pet hair on it it would promptly reject the claim and I would have to pay for the return shipping if I wanted the BC back. Well I do have a golden retriever so pet hair is a clothing line, fashion accessory and also a food group in our house. Ultimately the selling dealer ended up eating the price of the bc in trade for another brand. Now since that time I have purchased much more dive gear for me and and two of my sons, not one piece of it being Sherwood. I just don't know why some manufacturers won't take care of their customers when the product fails. There are some small dive equipment manufacturers that are treating their customers excellent and gaining a loyal following. All the while the large Scuba manufacturers are scratching their heads wondering why they are losing market share.

    iamrushman and Jonny Wishbone like this.
  5. Jonny Wishbone

    Jonny Wishbone Barracuda

    # of Dives: I just don't log dives
    Location: West Central Florida
    338
    186
    43
    I hear ya. I also had sherwood regs for my son and daughter. The plastic front covers disintegrated as you can see in the pics. sherwood again was of no help and pretty much blamed it all on me. They wouldn't even replace the plastic covers. since then I have spent a few thousand dollars on replacing gear and adding gear, gadgets, new computers and what not. I am proud to say that none of it is sherwood. At the time of the failures, the equipment had only been fresh water springs. No salt water and no pools. I think sherwood and suunto took the same customer service classes... DSCN0950 - Copy.JPG DSCN0955.JPG


    Attached Files:

    iamrushman likes this.
  6. iamrushman

    iamrushman Great White

    # of Dives: 1,000 - 2,499
    Location: ft. lauderdale, florida
    3,200
    876
    113
    i stand by my original statement....

    Jonny Wishbone likes this.
  7. Tim Matteson

    Tim Matteson Garibaldi

    # of Dives: 25 - 49
    Location: gilbert az
    1
    1
    3



    Very Nice work Jonny, I am having the same issue with 2 Sherwood Tortuga's. I am going to attempt to fix similar to yours. tortuga large 1.jpg







    tortuga med 1.jpg

    iamrushman likes this.
  8. iamrushman

    iamrushman Great White

    # of Dives: 1,000 - 2,499
    Location: ft. lauderdale, florida
    3,200
    876
    113
    good luck ..keep us in the loop of repair...

  9. Megpetite

    Megpetite Garibaldi

    3
    0
    1
    Hi:

    Today At the end of the diving, both of the attachments that hold the tank to the BCD broke. is ther any solution?
    I am from Mexico City, and ya BCD is a Luna


    [​IMG]



  10. Megpetite

    Megpetite Garibaldi

    3
    0
    1
    Hi Johnny very nice work

    Could you share how was the repair with the time ?

    Best regards
