Deco showing in Shearwater Cloud graph at end of NDL dives

[San Diego Climber]

An actual ceiling will show up at the top of the graph:



[rsingler]

Hello,

I've noticed that after downloading the 2 dives I've done on my Teric so far that the Cloud will include "deco" (red bar) as I am ascending and at safety stop.

These are both NDL dives, and my first thought was this was a feature of the adaptive safety stop that I have active, but I would have expected more discreet plateaus in the graph for that.

When I hover over areas with deco bar, the legend states 'Deco: NDL 99min'.

My buddy has noticed the same thing with his new Perdix.

Can anyone confirm this is the adaptive safety stop, or is something weird?

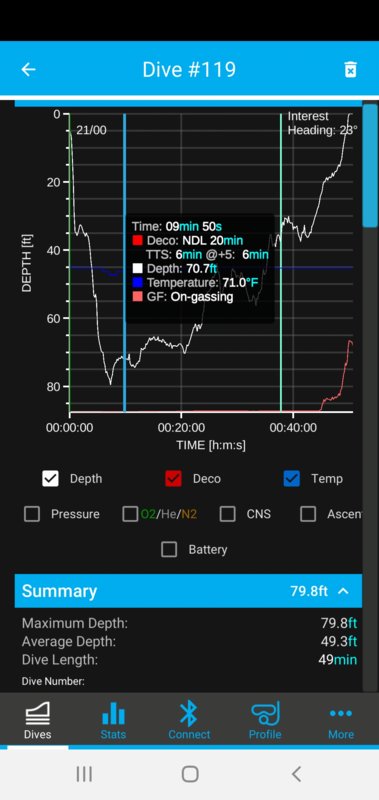

View attachment 622700

The orange red line at the bottom right of your graph, if that is what your are referring to, is GF99. On NDL dives, it is typically very little saturation in your leading compartment, and shows only toward the end of a longer, deep NDL dive, or on ascent with a shorter dive.

The data that shows in the box depends on where you had your cursor when you took the screenshot.
