Scubapro mod. 129

Discussion in 'Vintage Equipment Diving' started by Angelo Farina, Dec 5, 2019.

  1. couv

    couv Instructor, Scuba

    # of Dives: 1,000 - 2,499
    Location: 13th floor of the Ivory Tower
    5,492
    3,180
    113
    Sometimes you eat the bear; sometimes the bear eats you.

    Kupu, Bob DBF, Perryed and 1 other person like this.
  2. Kupu

    Kupu . ScubaBoard Supporter

    # of Dives: 1,000 - 2,499
    Location: NC
    767
    276
    63
    The second stages are what I was after, didn't hardly give the manifold a glance. Described as a double tank bar yoke in the 1977 catalog that Angelo Farina linked to. I could see it as a handy tank equalizer perhaps?

  3. AfterDark

    AfterDark Solo Diver

    # of Dives: 1,000 - 2,499
    Location: Rhode Island, USA
    10,174
    6,902
    113

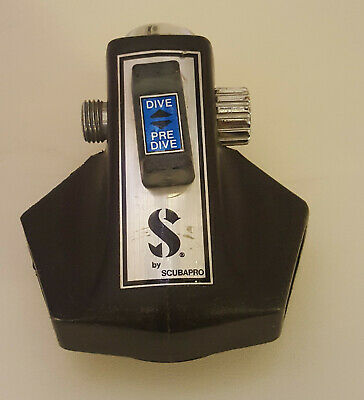

    If you can figure out how to service this the hose can go on either side.

    Scubapro Diving Regulator AIR 1 Collector Item | eBay
    That cap on the right can be removed to the other port and a hose a screwed on. I have one of these but have no idea how to service it.

    I used it a few times on a Mk5 1st stage before it started free flowing. It is the easiest breathing regulator I've used. Superior to any of my 156/Mk5 setups. However servicing looks to be difficult as getting parts must be also. So the 156/Mk5 comb still gets the nod from me.

    Kupu likes this.
  4. couv

    couv Instructor, Scuba

    # of Dives: 1,000 - 2,499
    Location: 13th floor of the Ivory Tower
    5,492
    3,180
    113
    @Kupu that is a very generous offer.
    @AfterDark attached are a few manuals you may find helpful.


    Attached Files:

    Kupu, AfterDark and rhwestfall like this.
  5. tridacna

    tridacna ScubaBoard Supporter ScubaBoard Supporter

    # of Dives: 2,500 - 4,999
    Location: New Jersey
    6,592
    3,826
    0
    I could live with the $100 purchase price but $25 to ship? Must be gift-wrapped in gold leaf.

    AfterDark and couv like this.
  6. AfterDark

    AfterDark Solo Diver

    # of Dives: 1,000 - 2,499
    Location: Rhode Island, USA
    10,174
    6,902
    113
    I agree, it was the only example I could find.

    tridacna likes this.
  7. Angelo Farina

    Angelo Farina Marine Scientist

    # of Dives: 1,000 - 2,499
    Location: Parma, ITALY
    1,263
    1,883
    113
    This is really GREAT !!! This community is fantastic!

    AfterDark and Kupu like this.
  8. Kupu

    Kupu . ScubaBoard Supporter

    # of Dives: 1,000 - 2,499
    Location: NC
    767
    276
    63
    For a DIYer who is familiar with the D series, the AIR1 is very similar. Reinstalling the diaphragm clip (#12) could be the biggest hassle for me, but fortunately the diaphragm can be rolled back and only partially removed without disturbing the clip for most rebuilds.

    This is not a substitute for full service, but you could try to get rid of minor free flow by adjusting the spring pad located in the cap. Shown as the first adjustment on page 7 of the manual attached by couv. If that does not stop the free flow or results in noticeably harder inhalation effort , the regulator most likely is due for rebuild.

    Take off the cap (#28) and then remove the spring adjusting pad (#30) by turning counter clockwise.
    Push the plug (#27) out with allen key, then put the spring adjusting pad back on the cap and tighten. Put the cap back on the regulator, leaving plug out. Insert allen key in cap to turn adjusting pad clockwise until free flow stops, then back it off a tad. Push plug back into cap and done.

    couv and AfterDark like this.
  9. halocline

    halocline Solo Diver

    8,690
    2,940
    113
    $100 for an Air1 is high IMO. I bought several for $20-25 over the years to use mostly as parts for my converted pilots. It is true that the Air1 and pilot are reversible. I was on the lookout for a left hand 109 (I know someone who has one....) for sidemount but then the SM instructor I would take the class with told me that nobody does that anymore, now they just route the left tank short hose behind the head just like in BM doubles.

    couv likes this.
  10. Kupu

    Kupu . ScubaBoard Supporter

    # of Dives: 1,000 - 2,499
    Location: NC
    767
    276
    63
    @Angelo Farina
    Here it is. Condition about as expected, diaphragm cover is toast and needs exhaust tee. A bit of corrosion build up and chrome scratches from use. $35 plus shipping.

    If interested, PM a shipping address. Thanks!
    20191213_131950.jpg 20191213_131305.jpg 20191213_131916.jpg
