SOLD; Haskel Mini Sport Booster w Case

[BMW]

For Sale

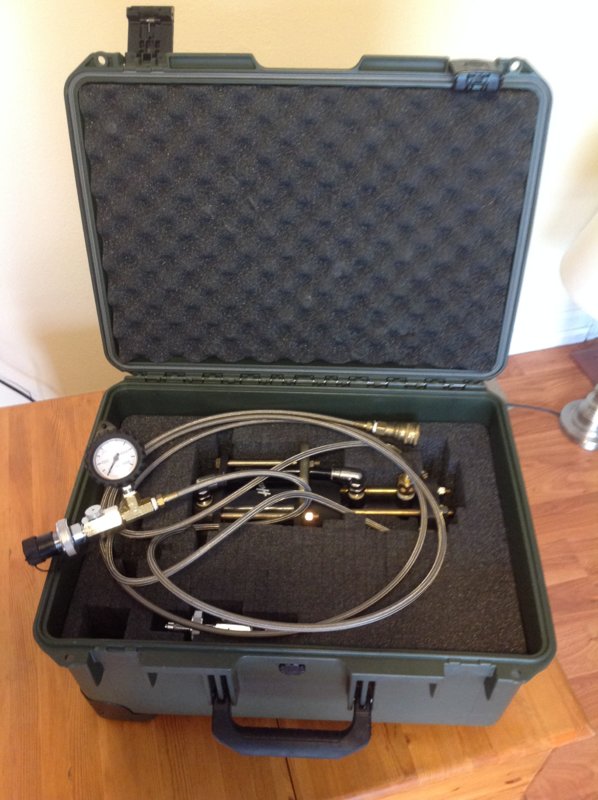

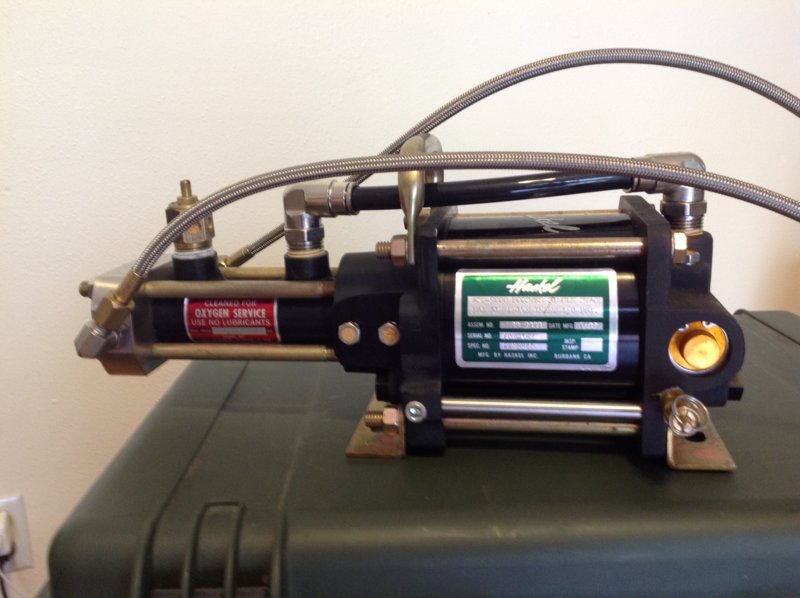

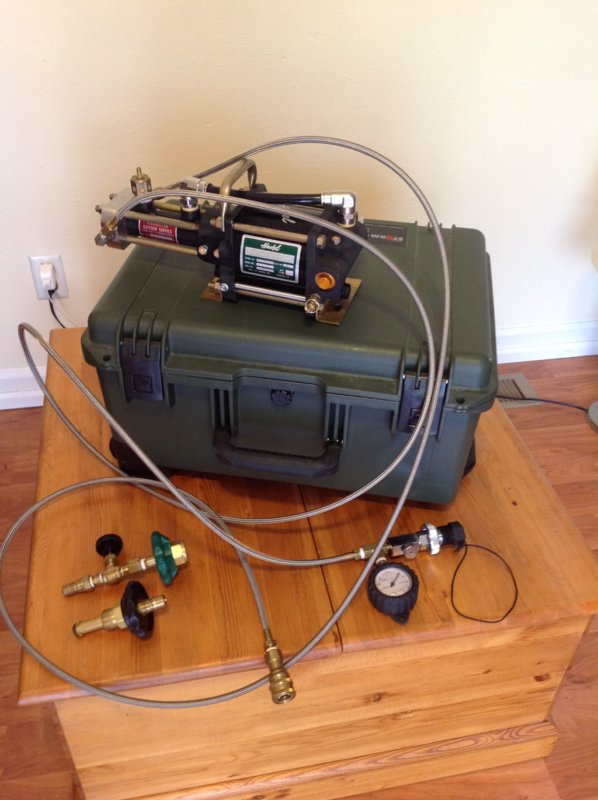

Used Haskel MSB-9000 SINGLE STAGE Mini Sport Booster

• Boost your own Oxyzen or Helium, blend your own gas

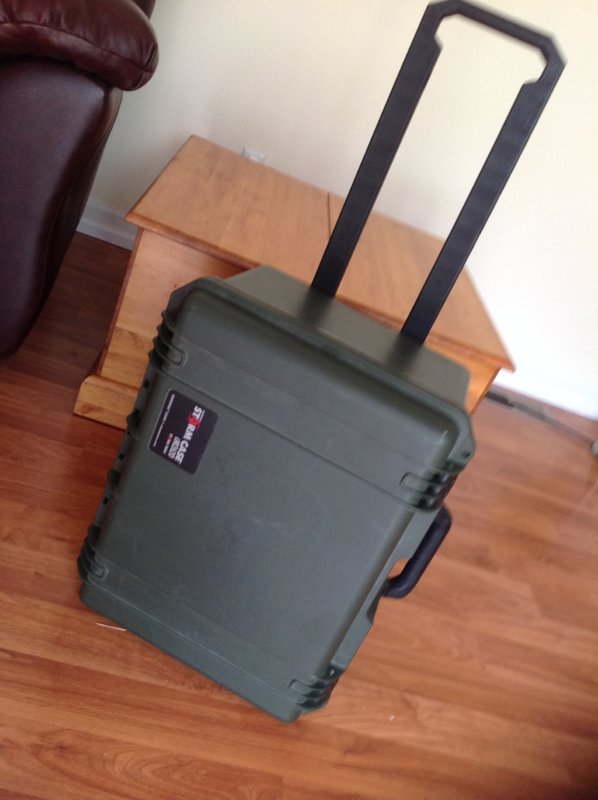

• Comes in Hardigg Storm Case iM2620 "Storm Trak" see stormcase.com
• O2 clean
• 6' whips for supply and fill tanks
• 5000 psi max HP gauge
• Adapter to attach to large O2 cylinders
• Adapter to attach to large He cylinders
• DIN adapter : use any DIN tank as supply gas
• (not in photos) includes yoke-style DACOR regulator with button gauge, for the drive gas

$1749 USD, shipping extra if necessary (or pick up in Portland OR)

Payment methods:

1. Cryptocurrency ok (Bitcoin, Ethereum, DASH), or
2. USD direct deposit or bank-to-bank email transfer (e.g. WF/Zelle)
3. CAD direct deposit via INTERAC (price in Canadian: $CAD 2300)

Please reply/PM if interested.



[Dr.Scub]

How much CFM from thetair compressor does it need to run?
I'm curious what the minimum CFM, and would it run on 3 CFM?

Thanks



[BMW]

I drove it from an AL80 I would get a few fills from that, plus more if I purposefully underfilled. I think some people run them from a shop compressor but no idea about CFM. Could be in here somewhere:

https://www.haskel.com/wp-content/uploads/Haskel-Gas-Booster-6-27-16.pdf

Cheers
Bryan



[BMW]

Item is SOLD thanks



[DA Aquamaster]

I drove it from an AL80 I would get a few fills from that, plus more if I purposefully underfilled. I think some people run them from a shop compressor but no idea about CFM.

I run a larger AG-30 off of my 5 CFM shop compressor. If you operate it at about 1 cycle every 5-6 seconds the compressor should keep up at around 90-100 psi. That works well for O2 as it keeps everything nice and cool - just mildly warm to the touch.

The drive section is separate from the gas section but if you've ever over hauled a haskel you'll appreciate the benefit of clean drive air. Consequently, I run the air coming out of my compressor through a 50' hose coiled in a 5 gallon bucket filled with water (with two 3/4" holes drilled in the lid for the hose to pass through to minimize evaporation) to act as a condenser, then a water separator to remove the condensed water and a finally a desiccant filter to remove any remaining oil and moisture. My compressor also has two outlets so I can run the shop air off one and the clean air off the other.



[Gonzalo Ruz R]

Me encantaria comprarlo pero vivo en Punta de Choros - Chile WWW.MEMORUZ.CL
Codigo POSTAL 1710101



[aglockd]

For Sale

Used Haskel MSB-9000 SINGLE STAGE Mini Sport Booster

• Boost your own Oxyzen or Helium, blend your own gas
• Comes in Hardigg Storm Case iM2620 "Storm Trak" see stormcase.com
• O2 clean
• 6' whips for supply and fill tanks
• 5000 psi max HP gauge
• Adapter to attach to large O2 cylinders
• Adapter to attach to large He cylinders
• DIN adapter : use any DIN tank as supply gas
• (not in photos) includes yoke-style DACOR regulator with button gauge, for the drive gas

$1749 USD, shipping extra if necessary (or pick up in Portland OR)

Payment methods:

1. Cryptocurrency ok (Bitcoin, Ethereum, DASH), or
2. USD direct deposit or bank-to-bank email transfer (e.g. WF/Zelle)
3. CAD direct deposit via INTERAC (price in Canadian: $CAD 2300)

Please reply/PM if interested.View attachment 464549 View attachment 464550 View attachment 464551 View attachment 464552

I am interested in your;
Haskel Mini Sport Booster.
aglockd



[michael-fisch]

I'm afraid you're out of luck, BMW posted on 22 June 2018 that the booster is sold.

Michael
