SP pilot regulator

Discussion in 'Vintage Equipment Diving' started by DDB, Nov 5, 2019.

  1. couv

    couv Instructor, Scuba

    # of Dives: 1,000 - 2,499
    Location: 13th floor of the Ivory Tower
    5,517
    3,204
    113
    Very nice @Kupu !

    :) I just got a couple of these in:


    BenjaminF, AfterDark and Kupu like this.
  2. Kupu

    Kupu . ScubaBoard Supporter

    # of Dives: 1,000 - 2,499
    Location: NC
    776
    286
    63
    Opening the poppet retainer was by far the biggest challenge. I found a 6 in 1 MIG tool that had perfectly sized section in the jaws to grip the retainer. The teeth were filed down with chainsaw file. After a weeks soak in WD40, it opened right up using thin blade small adjustable wrench to turn the stop while gripping the retainer with the MIG tool. Thanks to @Luis H for sharing repair procedures showing correct tool and @rsingler for the WD40 idea.

  3. Kupu

    Kupu . ScubaBoard Supporter

    # of Dives: 1,000 - 2,499
    Location: NC
    776
    286
    63
    Diagram taken from a Czech vintage scuba site. Fun site to browse through, I needed the help of google translate.

    a) pilot valve open and main valve closed
    b) main valve open
    PILOT VALVE OPERATION.jpg

    axxel57 and couv like this.
  4. rsingler

    rsingler Scuba Instructor, Tinkerer in Brass Staff Member ScubaBoard Sponsor

    # of Dives: 500 - 999
    Location: Napa, California
    4,437
    5,520
    113
  5. Kupu

    Kupu . ScubaBoard Supporter

    # of Dives: 1,000 - 2,499
    Location: NC
    776
    286
    63

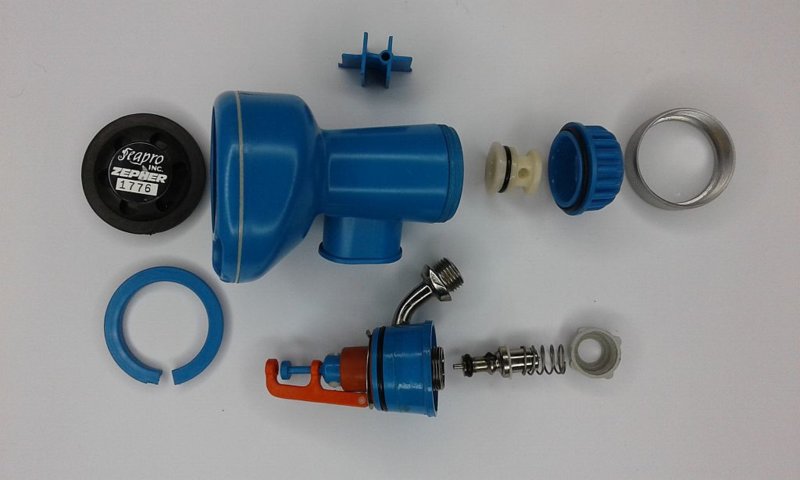

    Here is another Tony Christiansen creation from the early 80's, a Seapro Zepher. It is in very good condition, I have not yet tried to open the pilot valve, shown on lower right
    zepher resize.jpg

    jadairiii, halocline, axxel57 and 3 others like this.
  6. rsingler

    rsingler Scuba Instructor, Tinkerer in Brass Staff Member ScubaBoard Sponsor

    # of Dives: 500 - 999
    Location: Napa, California
    4,437
    5,520
    113
  7. Luis H

    Luis H Instructor, Scuba

    # of Dives: I'm a Fish!
    Location: Maine
    2,983
    1,271
    113
    I have one of those. :)

    Some day I will have time to play with it. o_O

    Thanks for the picture.

    Kupu and axxel57 like this.
  8. Kupu

    Kupu . ScubaBoard Supporter

    # of Dives: 1,000 - 2,499
    Location: NC
    776
    286
    63
    I had noticed you picked one up a few years ago, and defiantly would enjoy hearing how it goes if you find time to check it out.
    Mine performs decently, but I think not to its full potential. It has been a year since I last played with it, and now have a few new tuning and adjustment ideas to test out.
