DACOR part question

[JP_SCUBA]

Hey Lowwall... I've got a question that doesn't exactly follow this post but it does involve Mares, sort of. I've go a DACOR Fury second stage that has a failed diaphragm and I'm seeking a replacement. I understand that it should be the same as a MARES Rebel second stage but not sure. The part number appears to be the same for both regulators, 46184225 but I am unsure. Any assistance with the part number and/or sourcing a replacement will be greatly appreciated. TIA .... JP



[rsingler]

@lowwall



[lowwall]

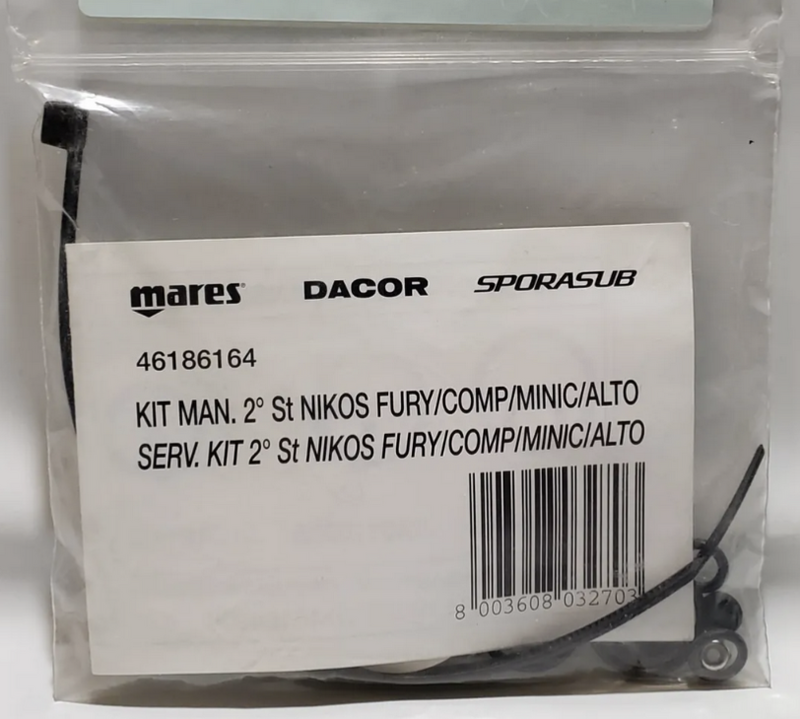

The reg is the same as the Mares Nikos. Here's the service kit.

As far as the diaphragm, the Fury/Nikos does use the same 46184225 as the Rebel and a couple other models. I think they call it the Rebel because it was the last stage to use it.

It looks like you can get it here:

Diaphragm for Mares Rebel Regulator 46184225

Replacement diaphragm for Mares second stage regulator. Compatible with the following second stages: Rebel, Axis, Akros, Epic Mares Code: 46184225

www.maremossoforzasette.it

I've bought from them twice without problems.



[JP_SCUBA]

The reg is the same as the Mares Nikos. Here's the service kit.

View attachment 813926

As far as the diaphragm, the Fury/Nikos does use the same 46184225 as the Rebel and a couple other models. I think they call it the Rebel because it was the last stage to use it.

It looks like you can get it here:

Diaphragm for Mares Rebel Regulator 46184225

Replacement diaphragm for Mares second stage regulator. Compatible with the following second stages: Rebel, Axis, Akros, Epic Mares Code: 46184225

www.maremossoforzasette.it

I've bought from them twice without problems.

Thank you Sir. I'll give them a try .... JP ...
