Diverite 5.5" Bands??

Discussion in 'Tanks, Valves & Bands' started by Blackfrogfeet, May 3, 2021.

  1. Blackfrogfeet

    Blackfrogfeet Registered

    # of Dives: 500 - 999
    Location: Canada
    35
    32
    Ok, I need some input to see if I'm totally crazy or really having an issue.

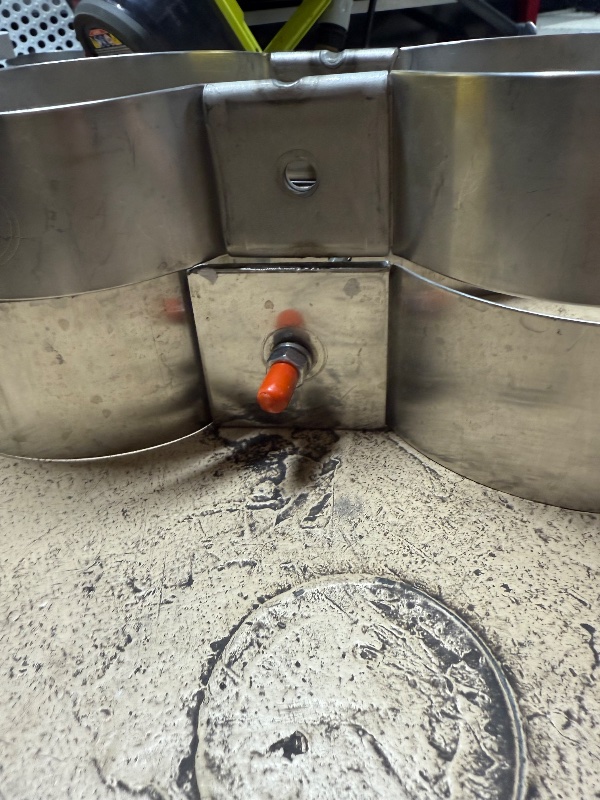

    I have a set of Faber LP50s I am trying to twin up with Diverite 5.5in bands. I'm am installing them the way I have been showed which is to slowly thread the cross bar into the valves to the right distance 8.5" and then slide the bands on, tightening the bands and adjusting the crossbar as necessary to make sure everything is lined up. The thing is I cannot get anything lined up. I have my manifold screwed down as narrow as it can get (8 1/4" centre to centre), but the bands won't line up. The centre to centre spacing on the bands seems to be almost 1/2" too narrow to accommodate a standard manifold. When I try to tighten the bands I can see the cylinders start to come into each other and that I risk bending the cross bar. I have tried this with 2 separate 8.5" manifolds and none of them work. I even accidentally bent the crossbar on one of them while tightening the bands. Again, that manifold was screwed as tight as it would get (8 3/8") and it was still too wide for the bands that are supposed to be meant for 8.5" spacing. Am I doing something wrong? Any help would be appreciated.

    I've contacted Diverite and they pretty much said the bands are good to go so I must be doing something wrong.

  2. Ulfhedinn

    Ulfhedinn Divemaster Candidate

    # of Dives: None - Not Certified
    Location: So CAL
    693
    100
  3. Blackfrogfeet

    Blackfrogfeet Registered

    # of Dives: 500 - 999
    Location: Canada
    35
    32

    Yeah.... I got that. Assembling the cylinders wasn't the problem. Diverite actually just got back to me and measured their bands and said they aren't actually good for 8.5" CtoC. Guess I'm not crazy.

    rjack321 likes this.
  4. rjack321

    rjack321 ScubaBoard Supporter ScubaBoard Supporter

    # of Dives: 1,000 - 2,499
    Location: Port Orchard, Washington State
    11,181
    5,922
    I was gonna say, the center spacing is not right. Glad they admitted that

  5. SCUBAwithMitch

    SCUBAwithMitch Dive Travel Professional

    # of Dives: 500 - 999
    Location: Oklahoma
    56
    28
    Wanna sell those no good Dive Rite bands? :)

  6. happy-diver

    happy-diver Skindiver Just feelin it

    # of Dives: 2,500 - 4,999
    Location: Same ocean as you!
    2,254
    1,475
  7. Asheron

    Asheron Contributor

    # of Dives: 200 - 499
    Location: NORCAL
    159
    60
    190mm manifold from blue steel might be what you need.

  8. Scared Silly

    Scared Silly ScubaBoard Supporter ScubaBoard Supporter

    # of Dives: 500 - 999
    Location: on the path to perdition
    5,901
    1,529
    As said above you need a 190mm manifold for those bands. Or given you bent the cross over you might be able to find another cross over. Thermo made some short non-isolating cross overs but they are very hard to find. At one point https://www.techdivinglimited.com/default.asp had the remaining stock. That was probably 8 years ago.

    If you go with new bands to get the 215 mm spacing and want a replacement isolating crossover send me a PM I have one (it was swapped out for a short non-isolating cross over as I too have 190 mm bands for 5.5" cylinders).

  9. rhwestfall

    rhwestfall Woof! ScubaBoard Sponsor

    # of Dives: 200 - 499
    Location: "La Grande Ile"
    16,825
    20,220
