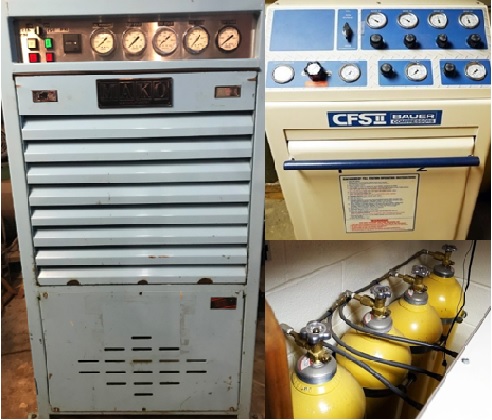

I have a High Pressure Breathing Air Compressor & Filtration System with a Bauer Fill Station and Cascade system. This is everything you need for a complete system. Including all the hoses & fittings, even the cylinder straps to secure cascade tanks to the wall, as well as the Electric Disconnect

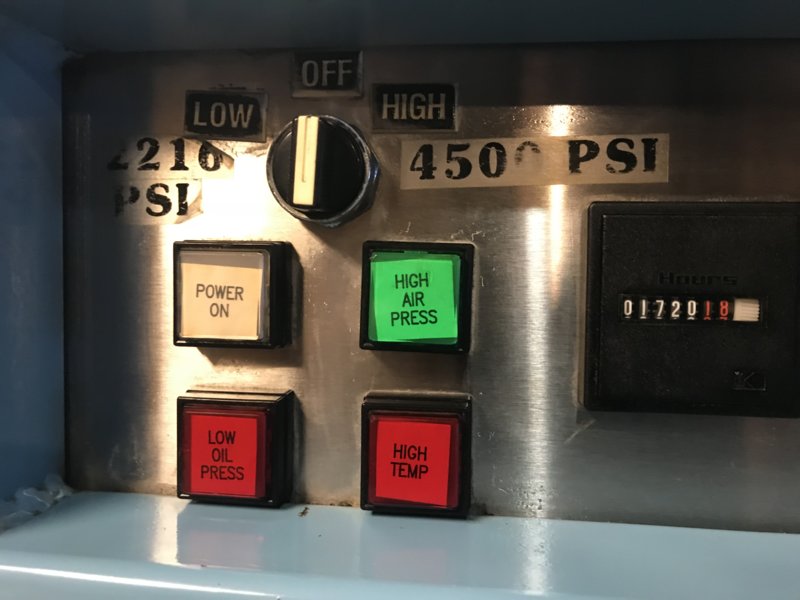

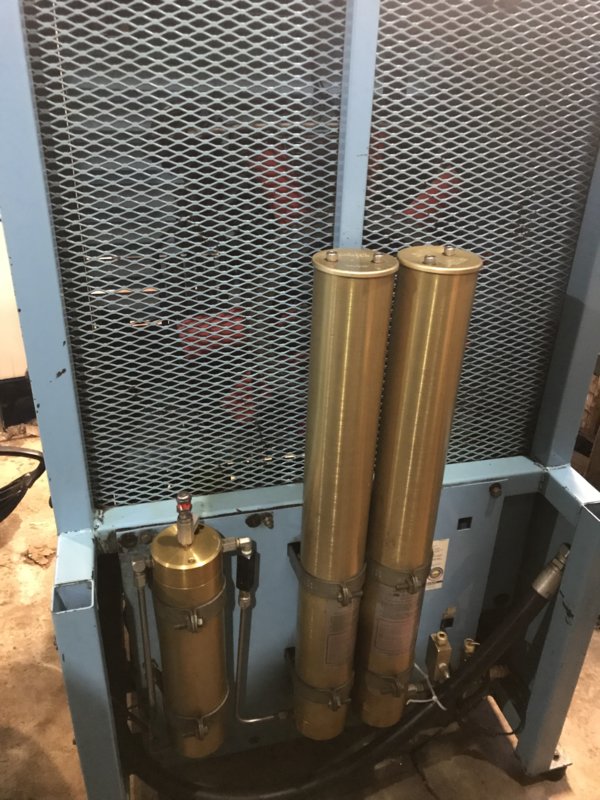

MAKO is a top end High Pressure Breathing Air Compressor. This unit was at a Fire Company so it was very well cared for with regular maintenance, as the pictures show. It has low Hours (1720). The compressor is a Model 9500 which is a 4 stage unit, 18.7 CFM and 500 PSI. It has a 15 HP motor that is 3 Phase, 240 Volts. The compressor has the optional Automatic Condensate Drain System with Muffler/Reservoir. The filtration system was upgraded to the MK-5C from the original MK-2C which allows for twice the amount of air to be processed before filter change (57,400 CF). Include is a 50 foot high pressure hose to allow the compressor to be in a different location than the fill station. Also included is the wall mount Electric Disconnect for the compressor, you will only need to connect your power to this panel. The original manual for the compressor and filtration system is included.

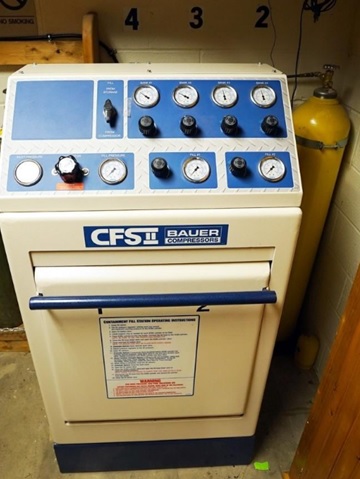

The fill station was purchased in 2008 and is in like new condition as the pictures clearly show. It is a Bauer CFS11 which has the controls for a 4 bank cascade system with two tank fill or more if not using the containment tubes. Included are all the hoses and fittings to connect the four cascade cylinders. The Cascade Cylinders were new in 2008 and are 4500 psi cylinders. There are four of them and included with the tanks is the wall mount straps to secure them from falling. Email me at killerbeejeep@gmail.com or call/text 315-749-4753
View attachment 451030 View attachment 451025 View attachment 451027 View attachment 451029
Is this still for sale?
