[rob.mwpropane]

Can he send you a pic above water?

Yes Sir.

He was nice enough to send me one, I can get better pics close up when I get home. The design is ok, but I think it could be better.

Here's the best pics I have right now.



[The Chairman]

I can get better pics close up when I get home.

And measurements.



[The Chairman]

Is this what you're looking for?

Onshape

Sign in to Onshape, the #1 fastest growing CAD system in the world with over 4 million users.

cad.onshape.com

​

Here's the link to Onshape. You can create the STLs and adjust the measurements. The through holes are 10mm, which is perfect for 3/8" bungee. It's extruded 25mm. Onshape



[rob.mwpropane]

Is this what you're looking for?

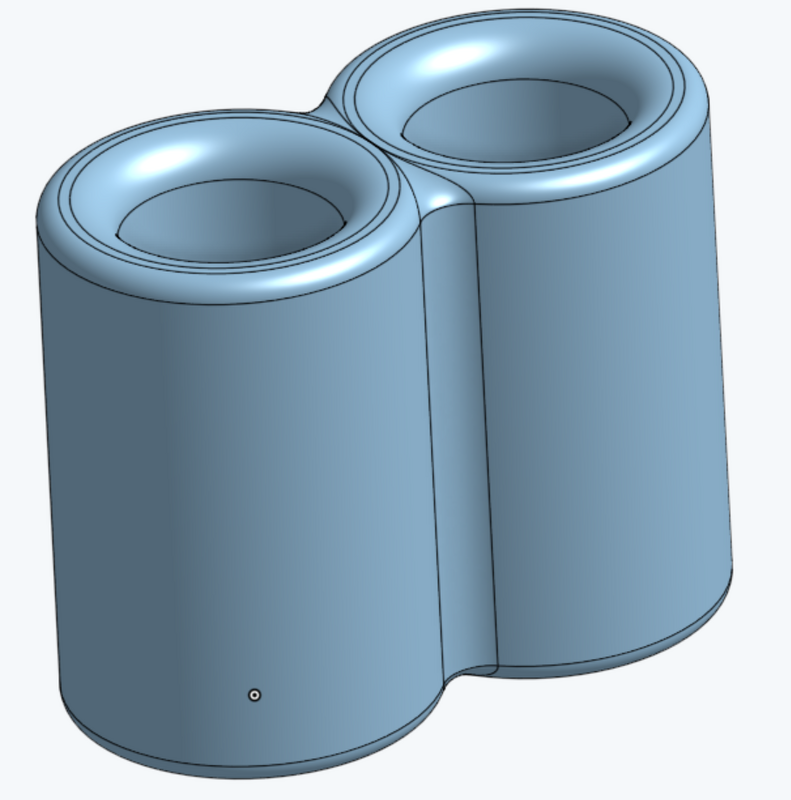

View attachment 813430

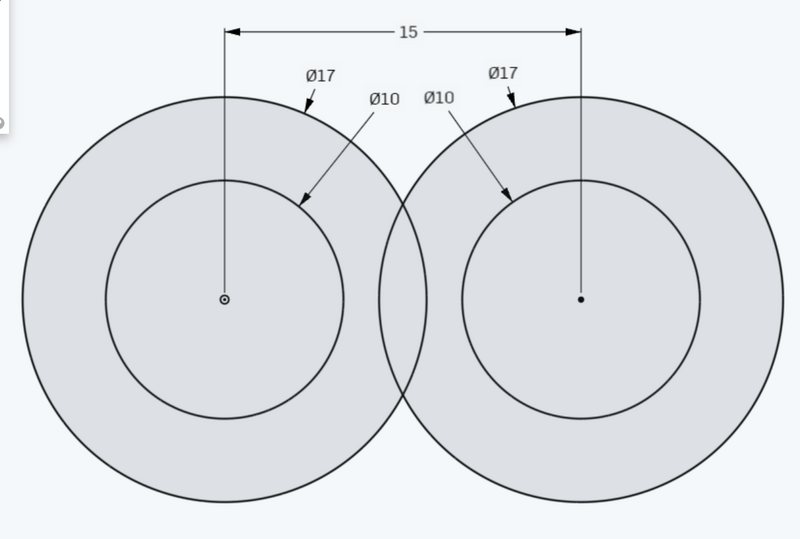

View attachment 813436
​

Here's the link to Onshape. You can create the STLs and adjust the measurements. The through holes are 10mm, which is perfect for 3/8" bungee. It's extruded 25mm. Onshape

Close... I know you guys are spoiled in FL with all that water north of 50F! I need something with a little meet to be able to pull out with thick gloves... maybe like a pinch tab on it? Like 1/2" "fin" sticking out?

What do you think?



[The Chairman]

Close... I know you guys are spoiled in FL with all that water north of 50F! I need something with a little meet to be able to pull out with thick gloves... maybe like a pinch tab on it? Like 1/2" "fin" sticking out?

What do you think?

Like this???



[The Chairman]

Another angle, and I rounded the handle a bit more...



[rob.mwpropane]

Another angle, and I rounded the handle a bit more...

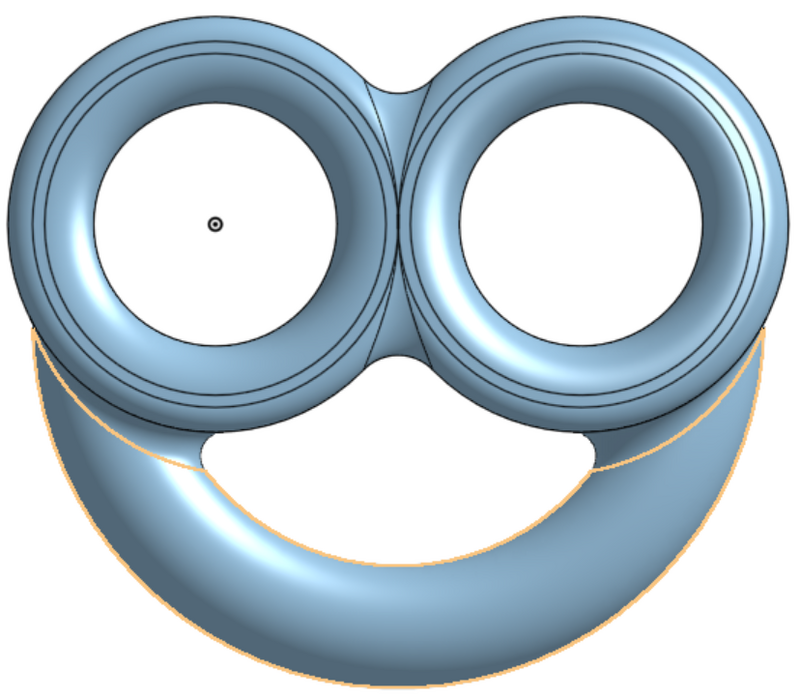

View attachment 813439​

That looks pretty great... better then anything I could come up with. I like the rounded "handle".

Any chance you can turn it into an stl or were you just throwing out ideas? I can try printing this afternoon.

Thanks!



[NDonahue]

Is it more than a 1” cube with two holes for what looks like 3/8” shock cord? If you can describe it, I can send you an STL.

[edit] NVM. I didn’t see the below posts.



[The Chairman]

It's saying the file is too large. Click on the link to Onshape. In the bottom left you'll see the name "BungeeTerminus". Right click and select "Export".



[The Chairman]

I increased the file size allowed... so here it is.
