Bigbella

ScubaBoard Supporter
ScubaBoard Supporter
Messages
2,251
Reaction score
2,977
Location
San Francisco
# of dives
I'm a Fish!
Here are a couple of true "blasts from the past" -- finally rescued from my dismal Bay Area storage unit, which had always reminded me of the "Your Self Storage," from The Silence of the Lambs.

Among them, is a "Barakuda - Cyklomat," produced by Poseidon / Aqua Sport, some five decades ago, for the German company, Barakuda; and the second, one of the earliest models of the Cyklon.

Both of those very simple first stages only allowed for the use of a single second stage, pre-dating any use of submersible pressure gauges, by several years; and, aside from a notable lack of a purge button and the presence of a metal ejector sleeve, the "guttiwuts" of that fully metal Cyklomat, are nearly identical to that of any modern Cyklon.

The "connection wheels" on both regulators, were stamped "Aqua-Sport" of Göteborg, Sweden, a name which briefly preceded the use of the brand, "Poseidon" . . .


Attachments

  • E72847DA-F24A-4FE4-9518-B5E25EDA9397.jpeg
    86.3 KB · Views: 91
  • 5D44DFA2-58DE-41B8-A3DA-48DCA896A7B8.jpeg
    74.9 KB · Views: 84
  • C8C7AC66-DC8F-4204-A48F-2147CD1E6F04.jpeg
    70.6 KB · Views: 82
  • A28AA840-3248-49FA-99EA-FF0264B4DD54.jpeg
    67.8 KB · Views: 85
  • 890C00EC-5E29-4DCE-B15A-150C2482B2D7.jpeg
    116.3 KB · Views: 81
  • 4A2B942B-6C0F-46DD-82A4-10FB54940DEB.jpeg
    86.2 KB · Views: 75
  • C14BE3AB-DD3A-4FD6-90AF-87D3BE19FC44.jpeg
    95.4 KB · Views: 83
Could put a tee on it,, but what fun would that be, better to dive it as is:)
Ahh, but that would only allow the addition of a second LP hose -- no useful gauges, etc . . .

Maybe a banjo fitting

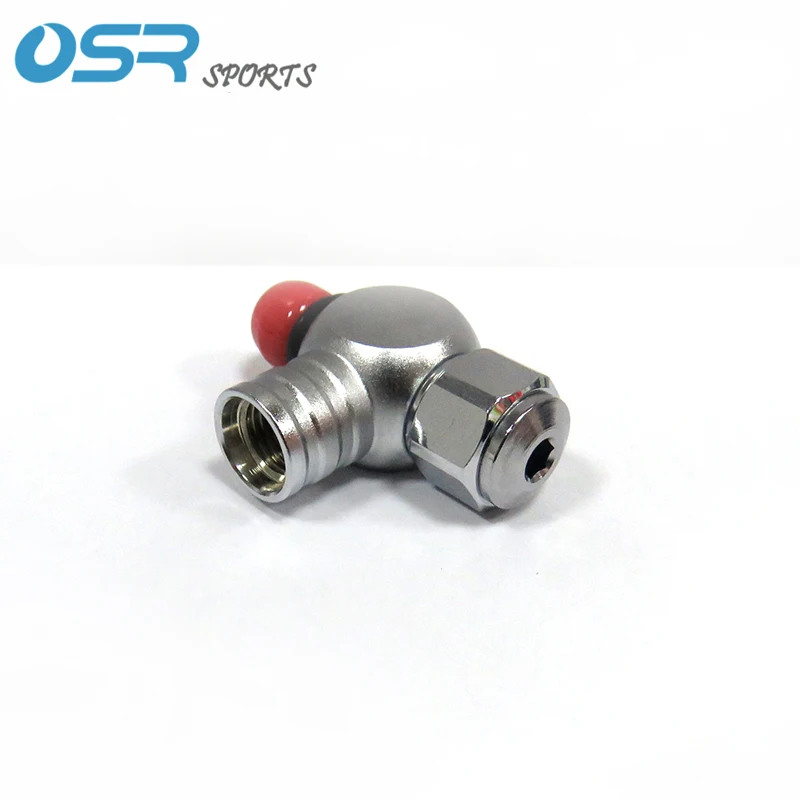

Like this would be ok,

Yes, but there is still no feasible way to add an HP port to the mix, for an SPG, for example -- the only thing that would potentially interest me. I really have no need for additional LP ports . . .


Attachments

  • 58DCAEAA-2ECC-4FC1-8C7B-D60150117076.jpeg
    107.5 KB · Views: 92
Yeah well its din,
reserve valve with a yoke to din adapter???
Or some kinda Male to female din with a take off port for the hp hose, not sure if something like that in made, might have to machine it, would get a bit long though,

It looks like the second stage has been serviced. It looks like it has a newer diaphragm.


Someone mentioned a banjo fitting...
It may also be possible to modify a DIN adapter.

Someone mentioned a banjo fitting...
It may also be possible to modify a DIN adapter.
Oh banjo fitting, is that the one that gets clamped between the yoke and tank I have one, are they still available?


Modification of a din yoke adapter is a great idea, silver solder a 7/16 NF ss nut to it and drill into the center to port it to hp,

VDH (VintageDoubleHose) has banjo fittings at times. It has been a while, but he may have them made at some point. They are normally the old 3/8" ports that was used for both LP and HP ports a while back.
