Deep6 metric SPG and DIN to Yoke adapter

Discussion in 'Deep 6 Outfitters' started by divinh, Dec 11, 2017.

  1. lowflyer

    lowflyer Divemaster

    # of Dives: I just don't log dives
    Location: SW
    372
    252
    63
    I agree with this opinion.
    I have used a DIN to yoke adapter on a week long trip, not a Deep6 adapter, though it looks the same. No problem. Depends a little on the configuration of the first stage, but even if it sticks out a bit and hits the back of your head, just lower the tank a very little bit in the tank bands. Should be no issue, IMO.

  2. scbaNE2179

    scbaNE2179 Barracuda

    # of Dives: I just don't log dives
    Location: Ocean
    284
    174
    43
    All user preference I guess, I just know I immediately hated the extra length. I just have my dive shop switch out DIN/Yoke each time. I just wish some of the Caribbean livaboards offer DIN valves instead of Yoke-it's a wish list but I have yet to see any boat that has dedicated DIN tanks.

  3. Umuntu

    Umuntu Divemaster

    # of Dives: I just don't log dives
    Location: Traveller
    508
    221
    43

    damaged HP swivel o-rings ?

  4. lowflyer

    lowflyer Divemaster

    # of Dives: I just don't log dives
    Location: SW
    372
    252
    63
    Don't know, but if there are o-rings in there, there's no way to see or get to them.

  5. Umuntu

    Umuntu Divemaster

    # of Dives: I just don't log dives
    Location: Traveller
    508
    221
    43

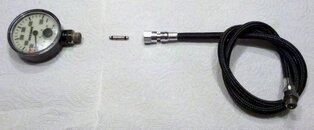

    The o-rings are on the swivel as shown. Either the hose is not tightened enough, or the o-rings are not sealing.


    Attached Files:

  6. rsingler

    rsingler Scuba Instructor, Tinkerer in Brass Staff Member ScubaBoard Sponsor

    # of Dives: 500 - 999
    Location: Napa, California
    3,336
    3,710
    113
    I'm sorry, but hose tightness is not a factor. The seal is via the o-rings. The lock nut could be loose in your fingers and the hose would still seal just fine. (It would of course be at risk for coming disconnected completely, but it wouldn't leak until at the last couple of threads on the fitting.)
    Leak sources could be the o-rings, scratched lands in the spool or swivel, a poor hose crimp to the swivel fitting, or a microscopic fault in the hose itself.
    A spool service is less than $10 at your shop. If that doesn't fix it, I'm sure Deep 6 will replace.

    And the OP just demonstrated why new or old gear always deserves a test before packing it up for a trip.

    Scuba J7 likes this.
  7. lowflyer

    lowflyer Divemaster

    # of Dives: I just don't log dives
    Location: SW
    372
    252
    63
    This braided hose swivel pictured is different than the one from Deep6, and it looks like you are referring to the o-rings on the HP spool. That's not where the leak is.

  8. Mr. Manfrenjensenden

    Mr. Manfrenjensenden Nassau Grouper

    # of Dives: 100 - 199
    Location: Toronto, Canada
    177
    108
    43
    The Juliet sails out of Miami over to the Bimini chain in the Bahamas, and they have convertible yoke/DIN valves. Neutral Aluminum 80s – now on board Juliet!
