Scubapro Parts I.D Help

Discussion in 'Vintage Double Hose' started by Bryan@Vintage Double Hose, Aug 8, 2018.

  1. Bryan@Vintage Double Hose

    Bryan@Vintage Double Hose Instructor, Scuba

    657
    770
    93
    I sell SCUBA gear.....Like I've ever had $12,500 all at once. Now if we can do $12.50 I'm in!

    couv, rhwestfall and rsingler like this.
  2. couv

    couv Instructor, Scuba

    # of Dives: 1,000 - 2,499
    Location: 13th floor of the Ivory Tower
    4,667
    1,911
    113
    I've seen diaphragm P/N 11-250-1xx in a couple of R190 second stages and in a Balanced Adjustable Asia Pacific model. The -"250"- indicated in the p/n caused me to search through old G250 parts diagrams and sure enough it was in a few of those models too. At any rate, it should fit R190/108/109/Balanced Adjustables/G250 and if it's damaged can be replaced with a diaphragm from any of those models. Don't attempt to remove the disc in the middle to clean it like the manual says......most likely you'll damage the diaphragm. (guess how I know)

    rsingler likes this.
  3. couv

    couv Instructor, Scuba

    # of Dives: 1,000 - 2,499
    Location: 13th floor of the Ivory Tower
    4,667
    1,911
    113

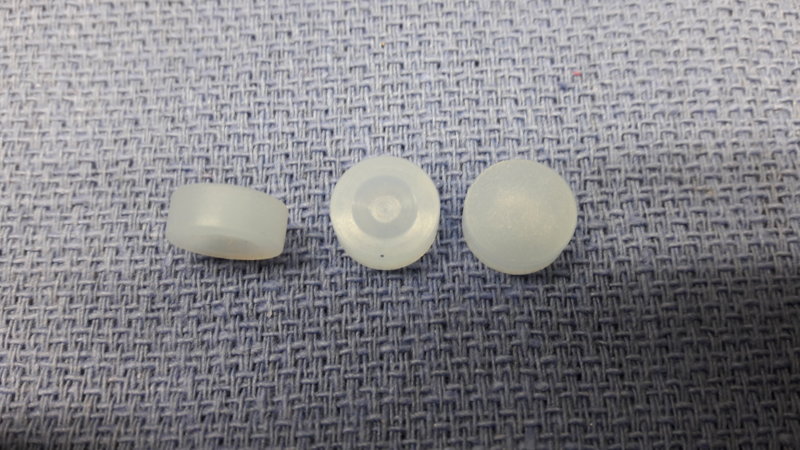

    I just ran across one of these. It's a high pressure seat for a MK15


    rsingler likes this.
  4. rsingler

    rsingler Scuba Instructor, Tinkerer in Brass Staff Member ScubaBoard Sponsor

    # of Dives: 500 - 999
    Location: Napa, California
    3,190
    3,484
    113
    Ah! That makes sense! There was a whole pile of other Mk15 stuff that I was able to identify, so it's now coming together.
    Bryan, I haven't given up on finishing the ID of the Dacor stuff. And if I still have those seats above, I'll now tag them as Mk15, thanks to @couv !

  5. couv

    couv Instructor, Scuba

    # of Dives: 1,000 - 2,499
    Location: 13th floor of the Ivory Tower
    4,667
    1,911
    113
    The MK15 saw two iterations of hp seats and seat retainers. One seat, has a groove for an o-ring like the MK10 Plus/MK20/25 but sadly, not interchangeable with those newer models. The other seat shown in the picture has a concave dimple like the newer version of the MK5/6/7/9/10 but again, not interchangeable with those models. The dimple seat also requires an o-ring on it's face rather than around it's body. There are other parts required for each seat configuration. The seat retainers are interchangeable-one was an "upgrade" to the other. I think the original version of carrier had an allen key indentation for removal/installation where the newer version has the SP two pin "scratch me if you can" retainer.

    northernone likes this.
  6. rsingler

    rsingler Scuba Instructor, Tinkerer in Brass Staff Member ScubaBoard Sponsor

    # of Dives: 500 - 999
    Location: Napa, California
    3,190
    3,484
    113
    Yes, Service Bulletins 234, 234A and 234B outline the changes and provide pics and new part numbers. Thanks for the reminder about what's not interchangeable, @couv !
    Those seats are the new ones.

    couv likes this.
  7. rsingler

    rsingler Scuba Instructor, Tinkerer in Brass Staff Member ScubaBoard Sponsor

    # of Dives: 500 - 999
    Location: Napa, California
    3,190
    3,484
    113
  8. rhwestfall

    rhwestfall Solo Diver

    # of Dives: 200 - 499
    Location: "La Grande Ile"
    12,289
    10,980
    113
    LMAO! :rofl3: How true!
