New truck needs new tank holder..going home made any ideas??

[w ripley]

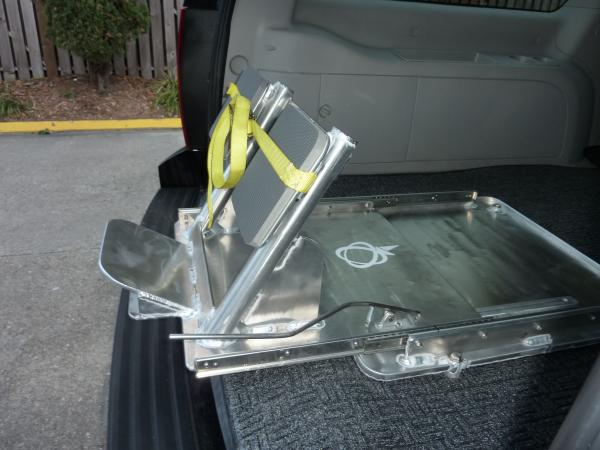

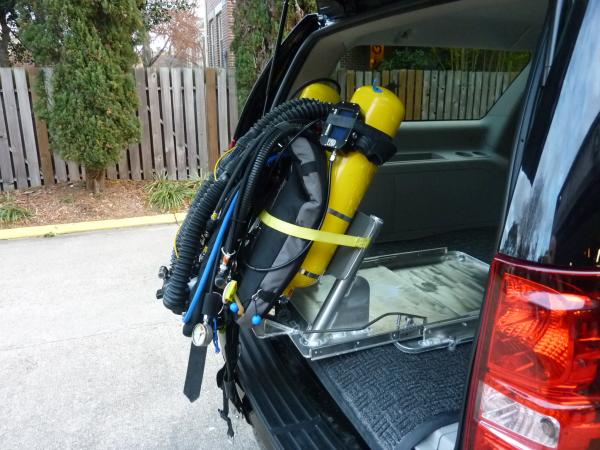

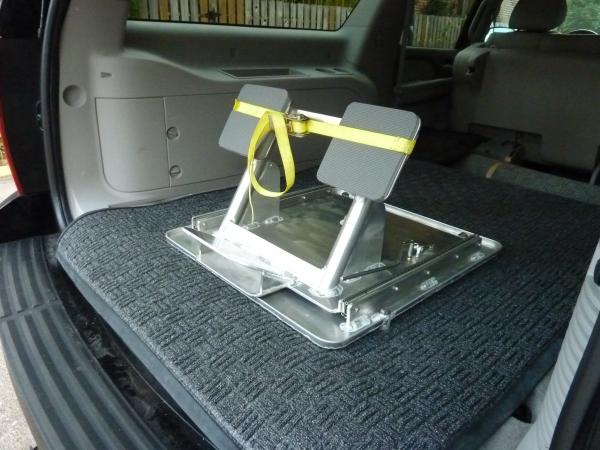

Here's what I ended up doing. Probably a little overkill for most. This one is alum, but my last one was built out of wood. You can put something like it in the bed of your truck (my Suburban is just a covered pickup).



[JerseyMike]

Not at all...They don't jump anywhere unless you are free wheeling in Mojabe Dessert. LOL
[h=3][/h]

Right until the tanks jump out of it on a bump and go free-range all over the truck bed . . .

If you are strapping them down to avoid that, you never mentioned it . . .

- Tim

---------- Post added ----------

Is that bolted down in the truck?

Here's what I ended up doing. Probably a little overkill for most. This one is alum, but my last one was built out of wood. You can put something like it in the bed of your truck (my Suburban is just a covered pickup).



[w ripley]

Is that bolted down in the truck?

Yes. It's also raised a little so air can circulate under the drip pan. Remove 4 bolts and the whole thing comes out. The nuts are fixed under the bed, so they don't fall out when you remove the stand. I drive 12 hours to FL (& 12 hours back) to get to cave country, so having everything secured (in case of an accident) is important to me.

---------- Post added ----------

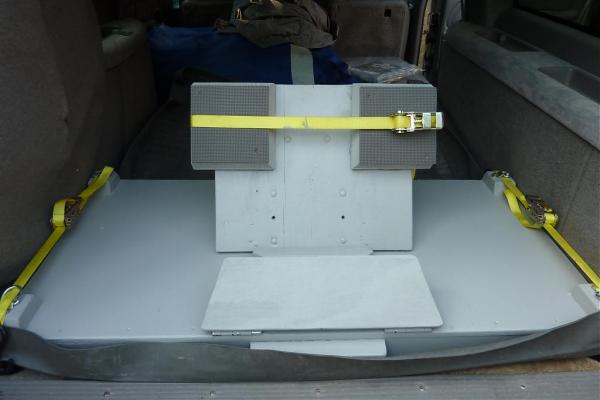

BTW, this was my wooden stand. It's pretty simple and worked well for 7 years. A couple of eye bolts in the bed liner is all it took. I used the ones that were already in my truck. Plywood, a little glue and nuts and bolts and it stayed secure. You don't have to have the angled stand that I use, but it's nice having your gear ready to back into when getting dressed for cave diving.



[JerseyMike]

That's a nice work of art. Thanks for sharing Bill.

Yes. It's also raised a little so air can circulate under the drip pan. Remove 4 bolts and the whole thing comes out. The nuts are fixed under the bed, so they don't fall out when you remove the stand. I drive 12 hours to FL (& 12 hours back) to get to cave country, so having everything secured (in case of an accident) is important to me.

---------- Post added ----------

BTW, this was my wooden stand. It's pretty simple and worked well for 7 years. A couple of eye bolts in the bed liner is all it took. I used the ones that were already in my truck. Plywood, a little glue and nuts and bolts and it stayed secure. You don't have to have the angled stand that I use, but it's nice having your gear ready to back into when getting dressed for cave diving.



[ScubaFrog01]

Here's what I ended up doing. Probably a little overkill for most. This one is alum, but my last one was built out of wood. You can put something like it in the bed of your truck (my Suburban is just a covered pickup).

Very nice setup, if you have plans on how you made it please share. I would love to do this

Thanks
scubafrog



[w ripley]

Very nice setup, if you have plans on how you made it please share. I would love to do this

Thanks
scubafrog

No plans. Have a friend who makes metal stuff for the marine environment who took my wooden model & with my thoughts make this. Send my your email address (PM) and I send some closeup pixs and you can go from there. BTW, the hinges are SS and will hold 500 pounds. Again, if interested I'll get the model # & mfgr for the hinges from him and include with the pixs.
