Violation displays on graph?

Discussion in 'Shearwater Cloud' started by Andy in Gap, Apr 8, 2019.

  1. Andy in Gap

    Andy in Gap Angel Fish

    # of Dives: 50 - 99
    Location: Lancaster, PA
    55
    12
    8
    New Perdix owner here, did 2 dives yesterday with my new toy and I'm in the process of learning the software. If I had violated the 30ft/min ascent rate, would those alarms automatically show up on the graph of my dives? I'm operating in OC rec mode.

  2. Kharon

    Kharon Solo Diver

    # of Dives: 200 - 499
    Location: Upstate NY
    3,798
    3,179
    113
    Don't know about Perdix, but they show on my Mares Icon.

  3. wulfderay

    wulfderay Angel Fish

    # of Dives: 0 - 24
    Location: Vancouver, Canada
    18
    14
    3
    Hi Andy,

    Ascent rate violations will not show up in the graph on the dive computer or in the log software.
    You will of course get a warning on the dive computer itself during the dive.

    The fast ascent warning works in two ways: First the ascent chevrons will go red and start to blink, but if the fast ascent is continued, you will get a text warning on the screen that will not go away until confirmed.

    Please let me know if this answers your question.

    Regards,
    Mark
    Software engineer,
    Shearwater Research

    Seaweed Doc likes this.
  4. scubadada

    scubadada Diver Staff Member ScubaBoard Supporter

    # of Dives: 1,000 - 2,499
    Location: Philadelphia and Boynton Beach
    10,775
    6,206
    113
    For my Oceanic VT3 or VT4, fast ascents are shown on the dive graphic as a yellow line. Here is an example

  5. Andy in Gap

    Andy in Gap Angel Fish

    # of Dives: 50 - 99
    Location: Lancaster, PA
    55
    12
    8
    Thanks for the info. Really happy with the computer and software, you guys build a top notch product.

  6. scubadada

    scubadada Diver Staff Member ScubaBoard Supporter

    # of Dives: 1,000 - 2,499
    Location: Philadelphia and Boynton Beach
    10,775
    6,206
    113
    Why would the ascent rate violations not be recorded and show up on the dive graphics? Isn't this valuable feedback?

  7. broncobowsher

    broncobowsher Solo Diver

    1,038
    568
    113
    If you have a little experience with Excel you can export the file as a CSV. Simple formula to compare one cell to the prior one. The limitation is the data rate. If the samples are 10 seconds apart you only check between those 10 second. The computer is faster than that, so the display might show more than what the file will display back.

  8. Andy in Gap

    Andy in Gap Angel Fish

    # of Dives: 50 - 99
    Location: Lancaster, PA
    55
    12
    8
    This is at the root of my question. If I screw up, I’d like to know. Maybe make it an option with one of the click boxes at the bottom? Thought I had seen a Shearwater graph with red circles on it indicating violations but it could have been a different computer or software, I can’t be sure. The information is already on the graph and can be calculated with the slider.

    scubadada likes this.
  9. scubadada

    scubadada Diver Staff Member ScubaBoard Supporter

    # of Dives: 1,000 - 2,499
    Location: Philadelphia and Boynton Beach
    10,775
    6,206
    113
    Hi @Andy in Gap

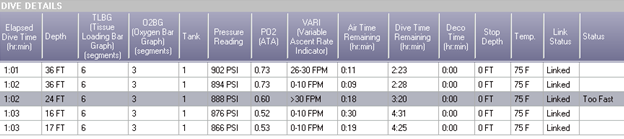

    In addition to showing up on the dive graphic (post #4), the ascent violation is shown in the dive details:

  10. Andy in Gap

    Andy in Gap Angel Fish

    # of Dives: 50 - 99
    Location: Lancaster, PA
    55
    12
    8
    Which software is that, Oceanic or other?

    The thing that brought this up is at one point my old computer was beeping but I never got more than 2 chevrons on the Perdix. Old computer is a Cressi Leonardo and is way too jumpy with the fast ascent warning. Simply raising your arm will set it off.
